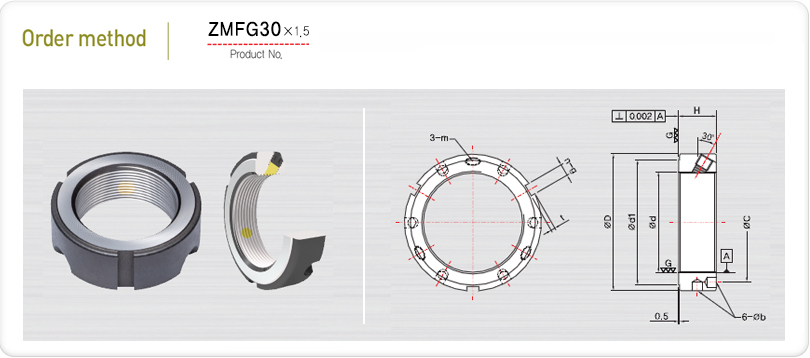

- This type locks set-screws from the diagonal direction.
- Placing set-screws 60°relative to the radial plane, this type provides
  stable locking force by preventing loosening.
- By using the set-screws, it is easy for fitting the concentric.
- This type is a grinding locknut that its clamping face and thread are
  finely grinded at the same time and the squareness is well managed.

- Material : SCM440(42CrMo4)
- Hardness : HRC 28~32
- Thread Tolerance : ISO 4H
- Manufacturing Method : High Precision Grinding
- Squareness : 0.002mm
